ALU ALU BLISTER PACKING MACHINE
MICROMAX 155

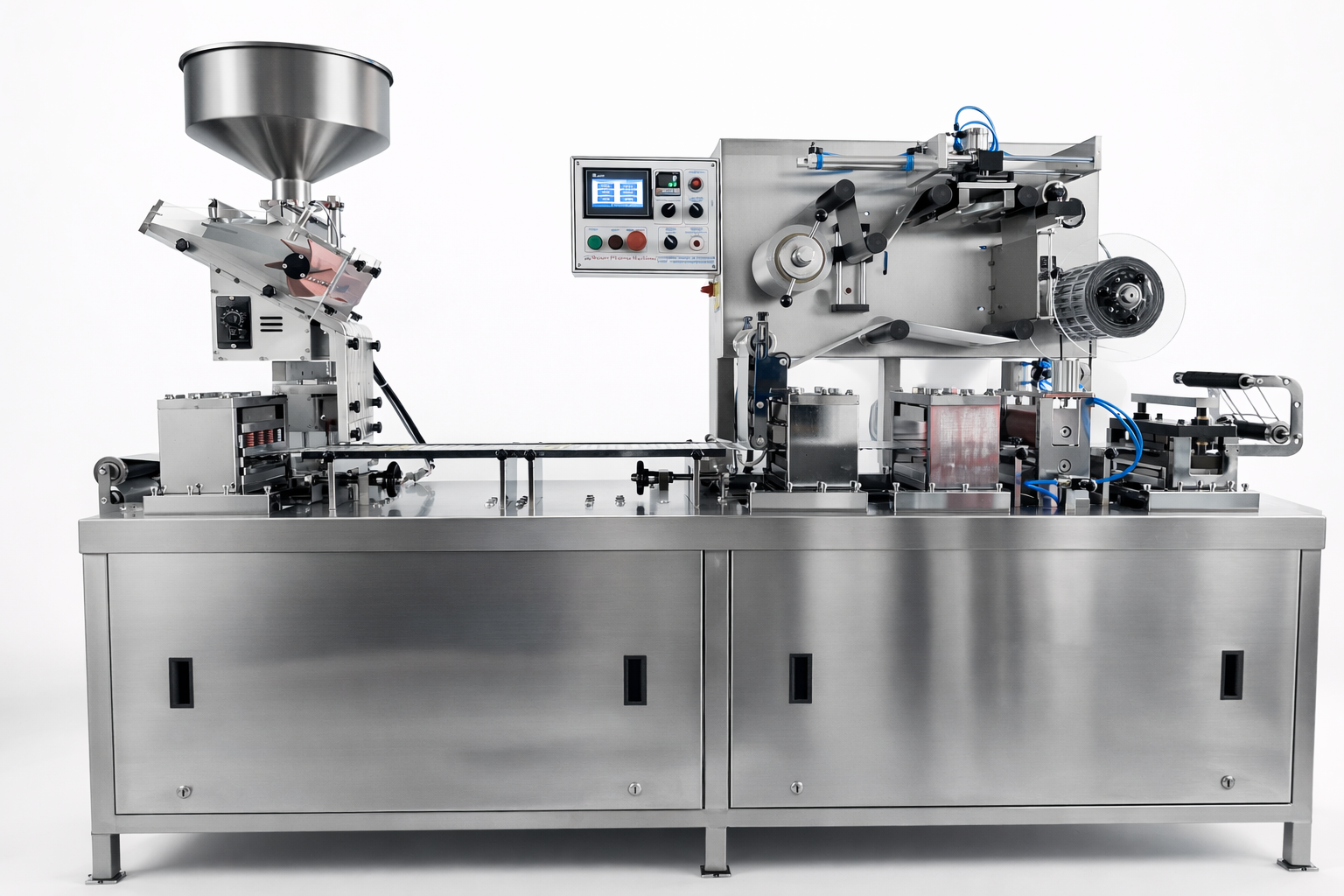

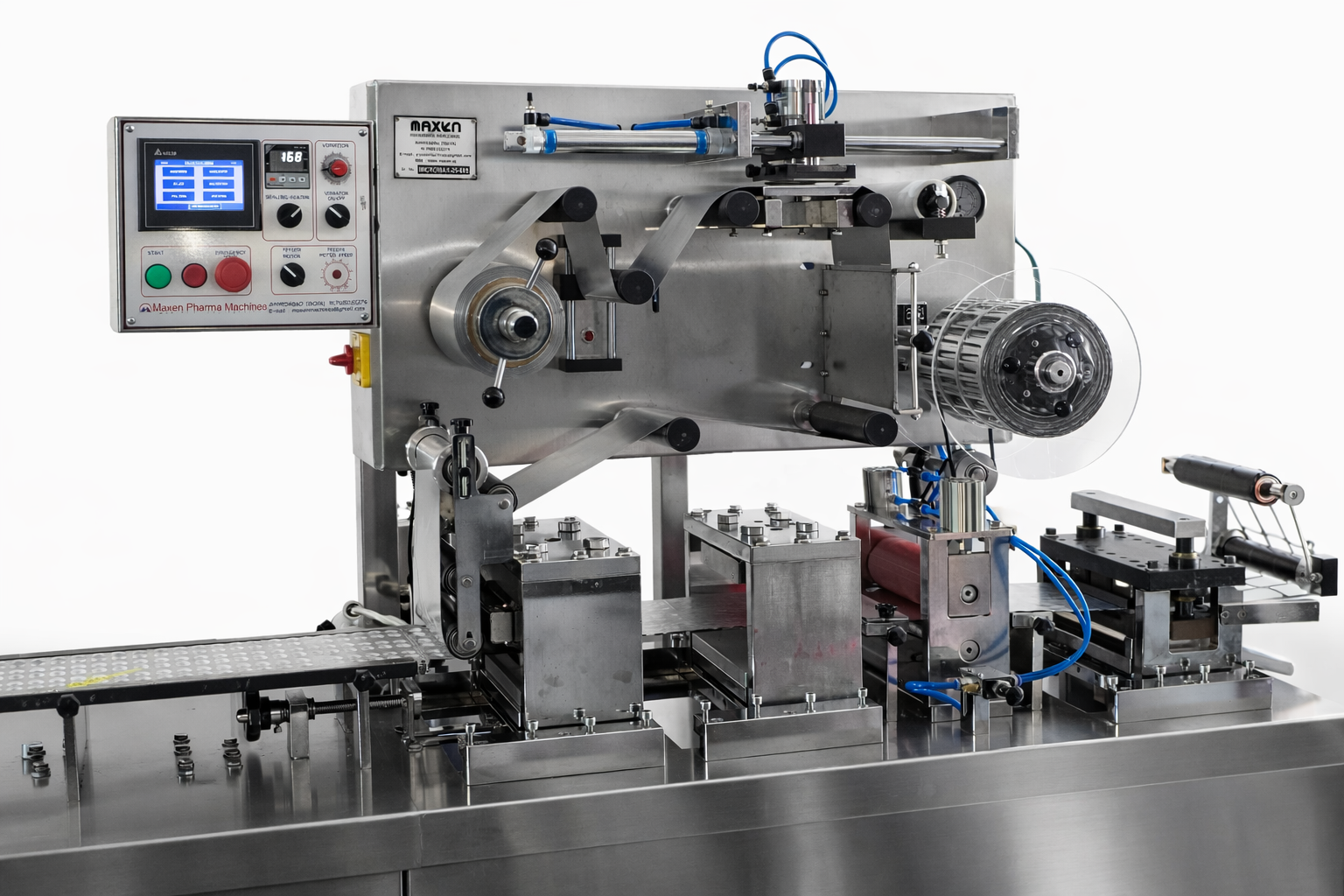

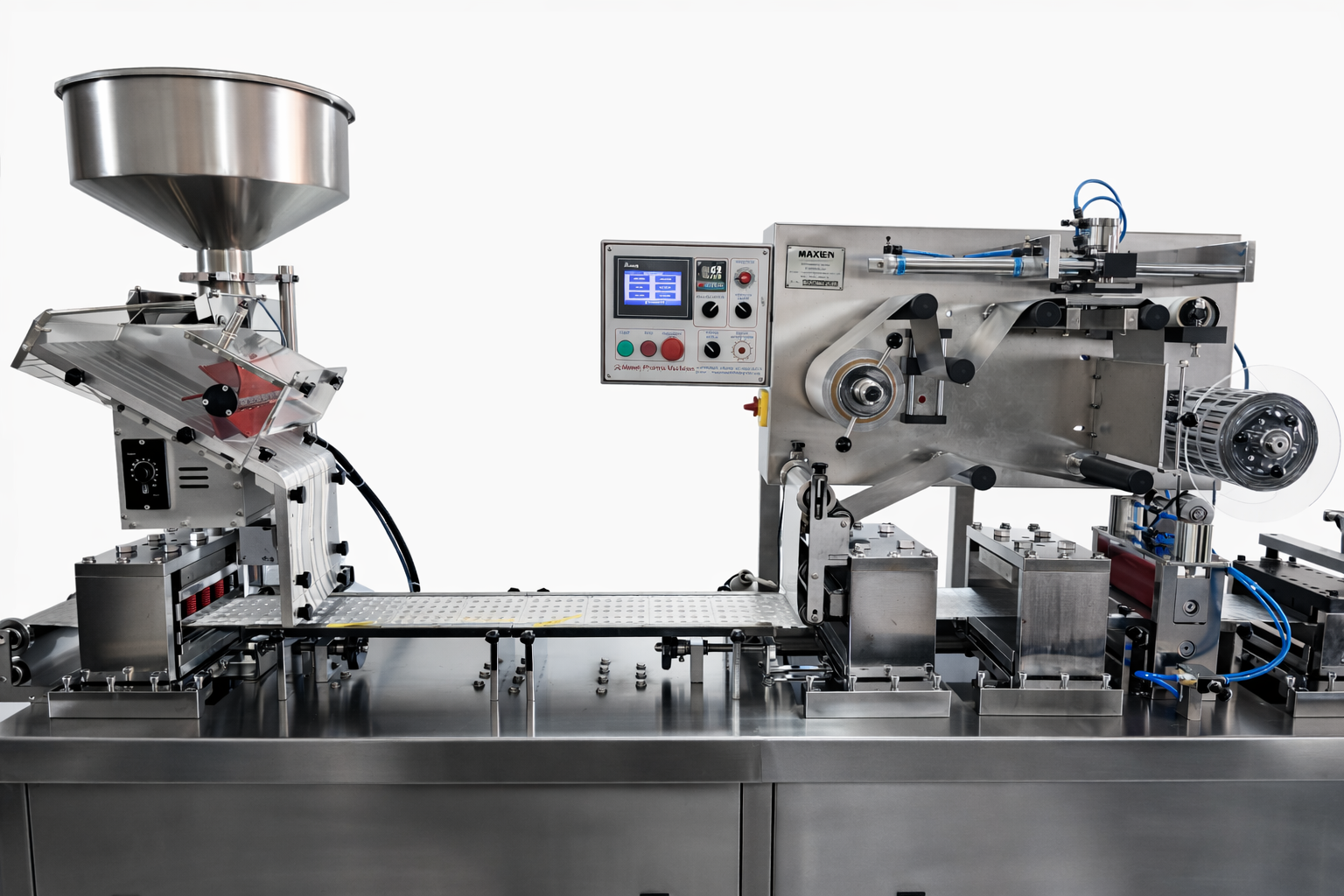

SINGLE TRACK ALU ALU BLISTER PACKING MACHINE
The MICROMAX 155 Alu-Alu Blister Packing Machine is a high-performance pharmaceutical packaging machine engineered for the precise packaging of tablets and capsules in cold-form Alu-Alu blister packs. Designed to meet modern pharmaceutical manufacturing requirements, the machine combines servo-driven technology, PLC automation, and GMP-compliant construction to deliver exceptional productivity, reliability, and packaging quality.
Applications
The MICROMAX 155 is suitable for packaging
- Tablets
- Capsules
- Nutraceutical Products
- Healthcare Products
- Pharmaceutical Products
It also supports:
- Online Batch Coding
- Perforation Between Blister Pockets
- High Quality Alu-Alu Cold Form Packaging
Key Features
Servo Driven Web Indexing
Ensures accurate positioning of blister packs with higher production precision.
PLC Controlled Automation
Advanced Delta PLC synchronizes all machine operations for reliable performance.
GMP Compliant Design
Designed according to pharmaceutical GMP requirements with hygienic stainless-steel construction.
Heavy Duty SS304 Structure
Built using 5 mm thick SS304 stainless steel for long service life and corrosion resistance.
Compact Machine Design
Occupies less floor space while delivering high production output.
7-inch Color Touch Screen
Easy machine operation through a user-friendly HMI interface.
Mechanically Cam Driven Motion
Provides smooth, stable, and synchronized machine movement.
Motorized Foil Handling
Independent motor-driven foil unwinder, winder, and trim winder for improved accuracy.
Quick Tool Changeover
Spanner-less format changeover significantly reduces production downtime.
High Quality Online Batch Printing
Wide print area ensures clear and accurate batch coding.
Technical Specifications :
| Specification | Details |
|---|---|
| Model | MICROMAX-155 |
| Machine Dimensions | 2400 × 570 × 1500 mm (Approx.) |
| Main Motor | 1.5 kW, 3 Phase, 50 Hz, 1440 RPM |
| Servo Motor | 1.0 kW, 200V, 3 Phase |
| Heating System | 8 Heaters × 450 W |
| Average Power Consumption | 3 kW |
| Air Requirement | 8 CFM @ 6 kg/cm² |
| Maximum Base Foil Width | 155 mm |
| Maximum Lid Foil Width | 155 mm |
| Base Foil Reel Diameter | 440 mm |
| Lid Foil Reel Diameter | 210 mm |
| Reel Core Diameter | 70 mm |
| Maximum Output | 35 Strokes/Minute |
| Maximum Advance | 120 mm |
| Maximum Pack Size | 100 × 132 mm |
| Maximum Stroke Length | 30 mm |
| Maximum Forming Depth | 10 mm |
| Batch Coding Area | 132 × 80 mm |
Benefits:
Increased Productivity
Produces up to 35 blister cycles per minute, increasing manufacturing efficiency.
Reduced Downtime
Quick format changeover minimizes production interruptions.
Consistent Packaging Quality
Servo indexing ensures precise forming and sealing for uniform blister packs.
Lower Maintenance Costs
Premium components from Bonfiglioli, Panasonic, Delta, Janatics, and Trilok ensure durability.
Easy Operation
Touchscreen controls simplify machine setup, monitoring, and troubleshooting.
Energy Efficient
Optimized electrical design reduces power consumption while maintaining high output.
Long Service Life
Heavy-duty stainless-steel construction provides excellent durability in pharmaceutical environments.
Utility Requirements
| Requirement | Specification |
|---|---|
| Electrical Supply | 415V, 3 Phase, 50Hz, 25 AMP |
| Air Requirement | 7 Kg/cm² @ 15 CFM |
| Cooling Water | 15–20°C, 40 LPM |
Industries Served
- Pharmaceutical Industry
- Nutraceutical Industry
- Healthcare Industry
- Herbal Products
- Food Supplement Manufacturing
Frequently Asked Questions
The machine is designed for packaging tablets and capsules in Alu-Alu blister packs.
Yes. The machine features a GMP-compliant stainless-steel design suitable for pharmaceutical manufacturing.
The MAX PRO-220 can operate at up to 35 strokes per minute.
Yes. It includes an online batch coding system with a print area of 200 × 110 mm.
